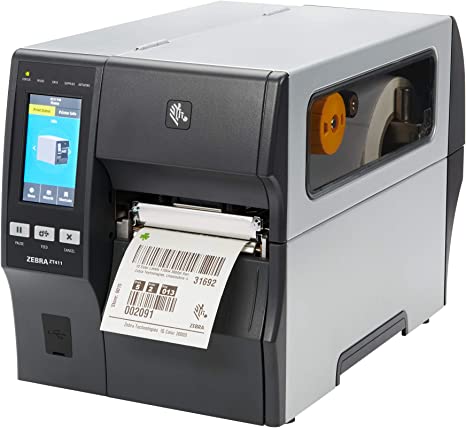

ZEBRA ZT411 Thermal Transfer Industrial Printer 203 dpi Print Width 4 Inches Features Serial, USB, Ethernet, and Bluetooth Connecting Options


Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers. The ZT400 offers advanced technology that drives versatility, ease of use and performance to a new level. Available in three print resolutions and two print widths, the ZT400 Series addresses a broad array of applications throughout manufacturing, transportation and logistics, retail and more. See printer status at a glance and manage settings quickly using the large color touch display. Field-installable connectivity, media handling and RFID options let you easily add new features as your needs evolve. And your IT department will find ZT400 printers easy to integrate and manage, thanks to Zebra's Print DNA suite of applications, utilities and developer tools-all powered by Link-OS.

Dual USB Host ports allow you to directly connect a wide range of USB device types. Use a memory stick to replicate firmware, files and configurations, or easily print and transfer formats. Simplify data entry by simultaneously connecting a scanner and keyboard with two host ports, there's no need to plug and unplug peripherals.

  • Thermal transfer and direct thermal printing
  • USB 2.0, high speed,Dual USB Host
  • 4.3 in. color touch display with intuitive menu for quick operation and settings management
  • Thin film printhead with E3 Element Energy Equalizer for superior print quality
  • Print speed up to 14 per second
  • Back lit graphic LCD display
  • Dual-wall frame construction
  • Energy Star qualified
  • ZebraDesigner Essentials - easy label design tool free at www.zebra.com/zebradesigner
Printing
  • 203 dpi print resolution (8 dots/mm)
  • Print speed per second up to 14 in. (356 mm/second)
Operation
  • Bi-colored status LEDs for quick printer status
  • Auto-switching 100-240V power supply

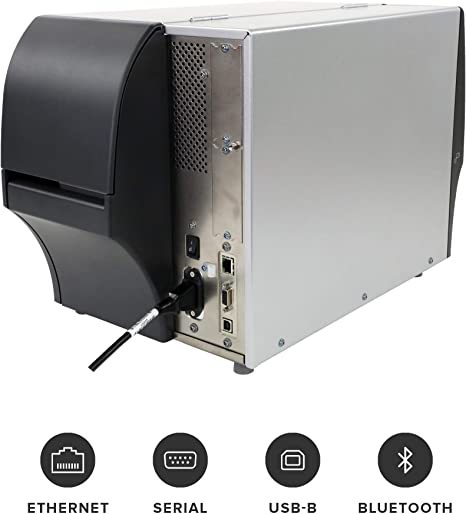

Communication RS-232 Serial (RS-232C with DB9F connector; Configurable baud rate (2400-115,200kB), parity, and data bits. Stop bits at 1 or 2; Software (XON/XOFF), hardware (DTR/DSR or RTS/CTS) communication handshake protocols)
Media Support Dual media sensors-transmissive and reflective
Design Metal media cover with enlarged clear viewing window
Firmware Resident ZPL, ZPL II and EPL programming languages, selectable through software or front panel
Ribbon Width: 2.00 in. (51 mm) to 4.33 in. (110 mm)
Maximum Ribbon Width: 1476 ft. (450 m)
Media Roll Size 8.0 in. (203 mm) O.D. on a 3 in. (76 mm) I.D. core
Media Types Continuous, die-cut, notch, black-mark
Ribbon Outside Diameter 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
Maximum Ribbon Length 984 ft. (300 m)
Minimum Label Length
  • Tear-off mode: 0.5 in. (12.7 mm)
  • Peel mode: 0.5 in. (12.7 mm)
  • Rewind mode: 0.5 in. (12.7 mm)
  • Cutter: 1.00 in. (25.4 mm)
Maximum Label and Liner Length:
  • 39 in. (991 mm) non-continuous-203 dpi, 300 dpi
  • 20 in. (508 mm) non-continuous-600 dpi
Media Web Width (Label and Liner):
  • 1.00 in. (25.4 mm) to 4.50 in. (114 mm) Tear/Cutter
  • 1.00 in. (25.4 mm) to 4.25 in. (108 mm) Peel/Rewind
