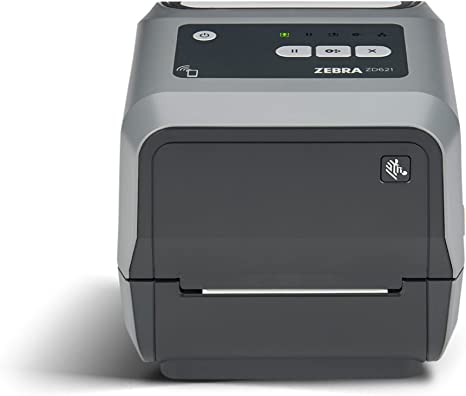

ZEBRA ZD621 Thermal Transfer Desktop Printer 203 dpi Print Width 4-inch USB Serial Ethernet
Technology is constantly advancing. So can your ZD621. Featuring an innovative architecture, it's engineered to power future printing. In comparison, it's 30% more powerful than the ZD620 Series and nearly 300% more than the GX Series. This gives you the ability to run more tasks, perform more operations simultaneously, maintain security and be ready for what's next.
Integrate your ZD621 into your existing printer fleet with confidence. Use the same label formats and applications you're using today. It supports both EPL and ZPL printer languages, and can emulate languages normally associated with other printer brands using Zebra's Print DNA tool, Virtual Devices.
Easily transport your ZD621 printer on a cart or with Zebra's optional carrying case, using the battery option. Print on the spot to reduce steps and increase productivity. Power through a full shift with the high-capacity battery.
Print DNA suite of software, powered by our Link-OS operating system, will get your printer up and running quickly and securely. Print consistently, and uninterrupted with a solution that's fully integrated and interoperable, and will enable your printer to evolve with your business needs.
- Print methods: Thermal Transfer or Direct Thermal
- ZPL and EPL programming languages
- 5 status icon, 3 button user interface

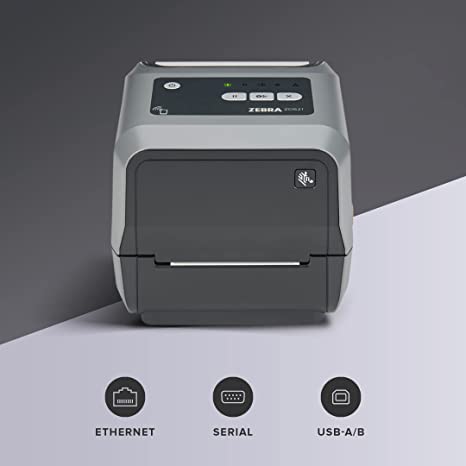

- Ethernet, Serial, USB 2.0, USB Host
- Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection
- BLE is intended for use with Zebra printer setup mobile app only
- Real Time Clock (RTC)

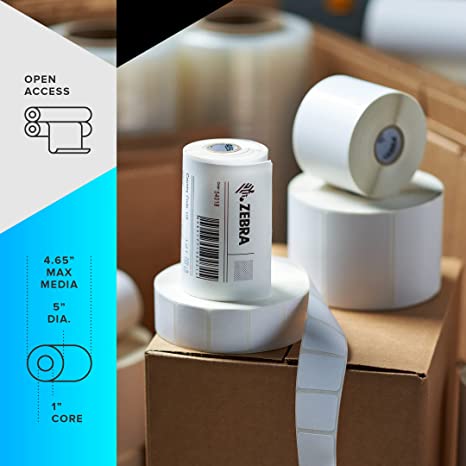

- OpenACCES for easy media loading
- Dual-wall frame construction
- ENERGY STAR certified
- ZebraDesigner Essentials - easy label design tool free at www.zebra.com/zebradesigner
- PDF Direct
- Two-year standard warranty
| Dimension: | Direct Thermal: 8.7 in. L x 7.0 in. W x 5.9 in. H 221 mm L x 177 mm W x 151 mm H Thermal Transfer: 10.5 in. L x 8.0 in. W x 7.5 in. H 267 mm L x 202 mm W x 192 mm H |
|---|---|
| Weight | Direct Thermal: 3.6 lbs./1.6 kg Thermal Transfer: 5.5 lbs./2.5 kg |
| Resolution | 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) | Memory | 512 MB Flash; 256MB SDRAM 64 MB user available non-volatile memory 8 MB user available SDRAM |
| Maximum Print Width | 4.09 in./104 mm for 203 dpi 4.27 in./108 mm for 300 dpi |
| Maximum Print Speed | 8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi) | Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor. |
| Firmware | ZPL II; EPL 2; XML; ZBI; PDF Direct |
| Label Length | Maximum: 39.0 in./991 mm Minimum: 0.25 in./6.4 mm |
|---|---|
| Media Width | Direct Thermal: 0.585 in./15 mm to 4.25 in./108 mm Thermal Transfer: 0.585 in./15 mm to 4.65 in./118 mm |
| Media Roll Size | Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters |
Media Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, label or tag stock, continuous receipt paper, wristbands, linerless media For use only with linerless printer model |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m) |
| Ribbon Width | 1.33 in./33.8 mm ? 4.3 in./109.2 mm | Ribbon Standard Length | 984 ft. (300 m); 243 ft. (74 m) |
| Ribbon Ratio |
|
| Ribbon Core I.D |
|
