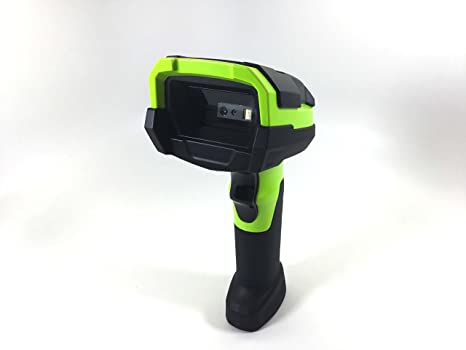

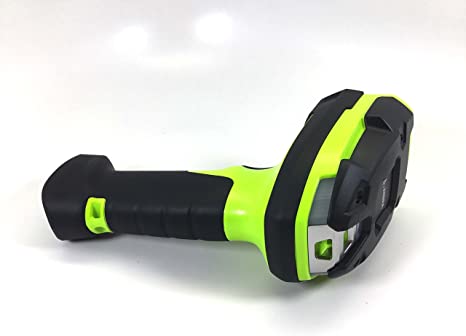

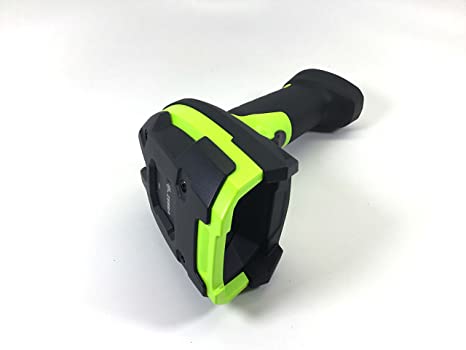

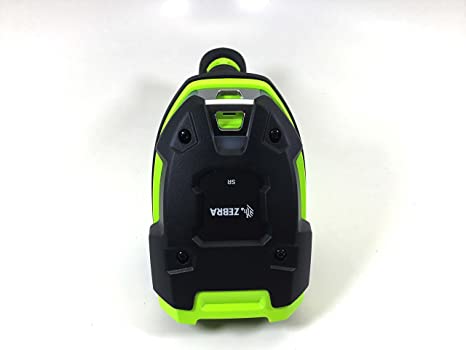

ZEBRA DS3608 SR SCANNER
Every day, workers in your warehouse and on the manufacturing plant floor scan thousands of barcodes to ensure product quality and on-time order delivery. Their productivity depends on the quality of the scanner you put in their hands. When workers need to capture 1D and 2D barcodes at standard ranges, with the corded DS3608-SR and cordless DS3678-SR scanner, you can give them the best unmatched rugged design, unmatched scanning performance and unrivaled manageability
The DS3608-SR/DS3678-SR the unstoppable performance you need to maximize workforce productivity and throughput in your operations.
Remotely configure scanners, upgrade firmware, format data properly for your back end and monitor PowerPrecision+ battery statistics and more with 123Scan and Scanner Management Service (SMS).
Mix and match the feedback modes that are ideal in your environment vibration, red and green LEDs located in an area where they are always easy to see, plus the traditional loud beep tone.
| Dimension: | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.6 cm W x 14.2 cm D |
|---|---|
| Weight | Corded: 10.8 oz./305 g; Cordless: 14.4 oz./407 g |
| Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max. |
Operating Current | DS3608-SR (corded): 340 mA (typical) |
| Standby Current | DS3608-SR (corded): 100 mA (typical) |
| Color | Industrial Green | Supported Host Interfaces. | USB, RS232, Keyboard Wedge. |
| Battery | PowerPrecision + 3100 mAh Li-Ion rechargeable battery | User Indicators | Direct decode indicator; LEDs; beeper; vibration |
| Scans per Full Charge: | 70,000+ |
|---|---|
| Illumination | One (1) Hyper Red 660nm LED |
| Imager Field of View | Horizontal: 42, Vertical: 28 | Image Sensor | 1,280 x 800 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew/Pitch/Roll | Skew: + 60; Pitch: + 60; Roll: + 360 | Decode Capabilities | 1D:Code 39, Code 128, Code 93, Codabar/NW7, Code
11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5,
GS1 DataBar, Base 32 (Italian Pharma) 2D:PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes. |
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range | Direct line of sight in open air : Class 1: Up to 300 ft. (100.0 m) Class 2: Up to 30 ft. (10.0 m) |
| Operating Temp | Corded: -22 F to 122 F/-30 C to 50 C Cordless: -4 F to 122 F/-20 C to 50 C |
|---|---|
| Storage Temp | -40 F to 158 F/-40 C to 70 C |
| Humidity | 5% to 95% condensing | Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete. |
| Tumble Specification | 5,000 tumbles @ 3.3 ft. (1 m) |
| Sealing | Scanner: IP65 and IP67; FLB cradle: IP65 | ESD | Per EN61000-4-2, +25 KV air discharge, +10 KV direct discharge, +10 KV indirect discharge |
| Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK |
| LED Safety | International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED) |
| Environmental | RoHS EN 50581: 2012 |
