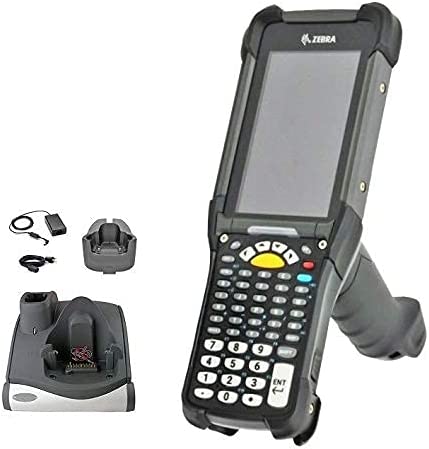

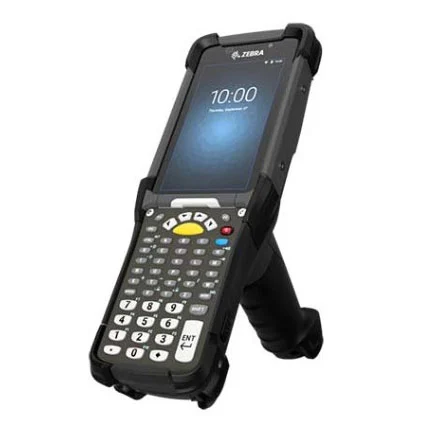

MC9300 HANDHELD MOBILE COMPUTER
Every day, over three million workers use an MC9000 Series mobile computer to streamline processes in warehouses and manufacturing plants all over the world. But now you need to handle and ship more orders every day, faster than ever. Introducing the mobile computer that can get it done, the MC9300 - the next evolution of the world's best-selling and most trusted enterprise mobile computer. New data capture capabilities include optional front and back cameras, extraordinary scan ranges and superior direct part mark (DPM) capture.
The ultra-powerful 8-core processor combines with up to eight times the RAM and 16 times the Flash memory of the MC9200 to deliver superior performance on all your voice and data apps.
When you give your workers the MC9300, you give them a mobile computer designed for comfort, with the most proven ergonomics - a perfectly weighted device with a pistol-style grip.
| Dimension: | 9.4 in. L x 3.5 in. W x 7.4 in. H 240 mm L x 88 mm W x 189 mm H |
|---|---|
| Weight | 26.9 oz./765g with battery |
| Display | 4.3 in. WVGA (800 x 480), color display |
| Imager Window | Corning Gorilla Glass | Touchpanel | Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); screen protector (sold separately); Corning Gorilla Glass with air gap (standard model) or optically bonded (freezer model). |
| Backlight | LED backlit display |
| Power | Rechargeable Li-Ion: 3.6V, 7000mAh, (Freezer Capacity battery ? 5000mAh) Both batteries offer: PowerPrecision+ with improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management, fast charging (up to 2.4A); hot swap battery backup with temporary session persistence | Expansion Slot | User accessible MicroSD with 32GB SDHC and up to 256GB SDXC |
| Network Connections | USB 2.0 High Speed (Host & Client), WLAN and WPAN (Bluetooth) |
| Notification | Audible tone; Multi-color LED bar (between keyboard & display), haptic feedback |
| Keypad | Backlit, Field replaceable keypads; 58 Key Alpha-Numeric, 53 Key Alpha-Numeric STD, 53 Key Terminal Emulation (5250 and VT), 43 Key, 34 Key Numeric/Function, 29 Key Numeric/Calculation |
| Voice & Audio | Speaker, Microphone, PTT Voice (Internal Speaker and Bluetooth Wireless Headset Support). |
| Operating Temp. | Standard: -4F to 122F/-20C to +50C Freezer: -22F to 122F/-30C to +50C |
|---|---|
| Storage Temp. | -40F to 158F/-40C to 70C |
| Humidity | Standard: 5% to 95%, non-condensing Freezer: 5% to 95%, condensing (Condensation resistant model with integrated exit window heater)s |
Drop Specification | Standard: 10 ft. (3.1m) drops at room temperature per MIL-STD-810G, 8 ft. (2.4m) drops to concrete across temperature per MIL-STD-810G Freezer: 7 ft. (2.1m) drops to concrete across temperature per MIL-STD-810G. |
| Tumble Specification | 6,000 3.3 ft. (1m) tumbles; meets and exceeds IEC tumble specification. |
| Sealing | IP67 and IP65 per applicable IEC sealing specifications | Vibration | 4 g's PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis |
| Thermal Shock | -40F to 158F (-40 C to 70C) rapid transition |
| Electrostatic Discharge (ESD) | 15kVdc air discharge; 8kVdc direct discharge; 8kVdc indirect discharge |
| CPU | Qualcomm Snapdragon 660 octa-core, 2.2 GHz |
|---|---|
| Operating System | Upgradeable to Android 14 |
| Memory | 4 GB RAM/32 GB Flash pSLC | Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Bluetooth | Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support |
| Multimedia | Wi-Fi Multimedia (WMM and WMM-PS; Including TSPEC) |
