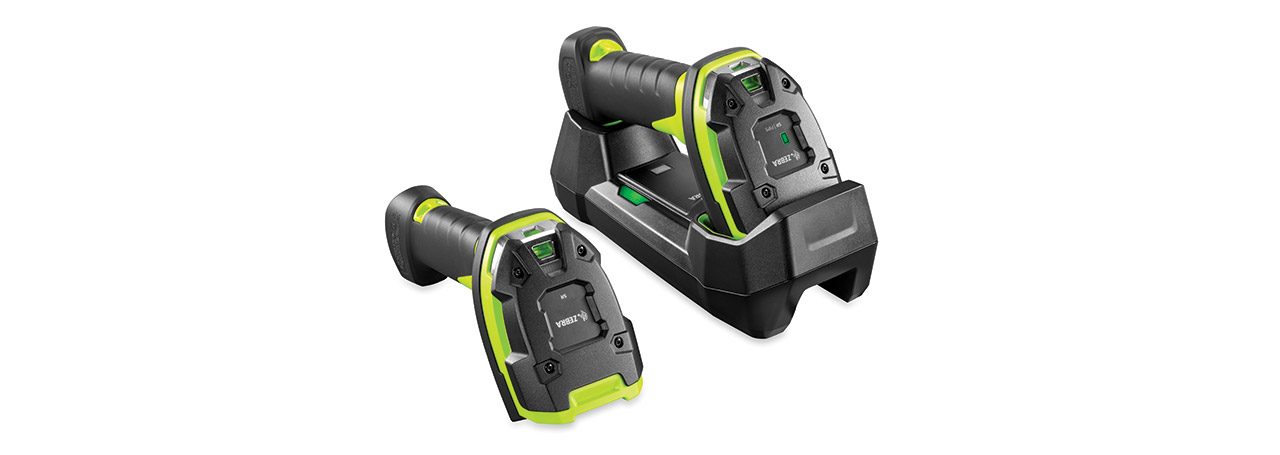

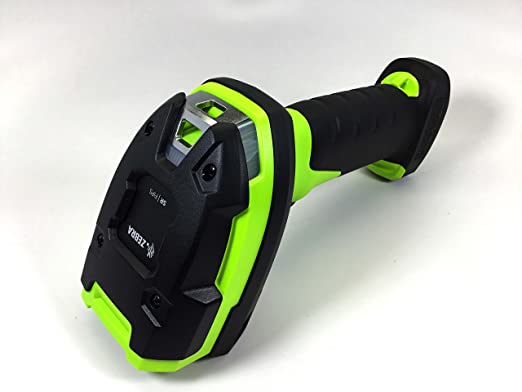

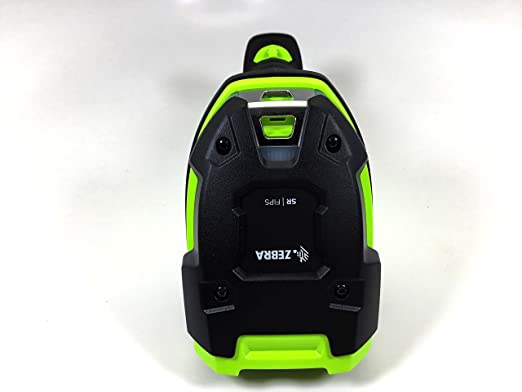

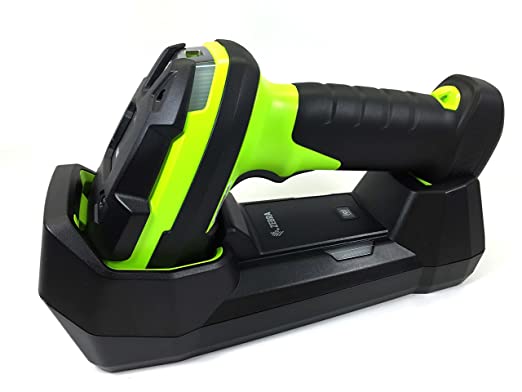

ZEBRA DS3678 SR WIRELESS SCANNER
Superior scanning performance on any 1D/2D barcode, in any condition-The advanced imager reads 1D and 2D barcodes displayed on a screen or printed on a label faster and farther than other standard scanners. Easily read barcodes even if they are under shrinkwrap, damaged, dirty or poorly printed.
Ultra-rugged the most indestructible design in its class--The DS3608-SR is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-SR is built to survive an 8 ft./2.4 m drop to concrete - 23 percent more durable than any other scanner in this class. It is dustproof, sprayproof and waterproofed to IP67, it can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
Extreme temperature rating--Built to handle extreme cold, heat and more, you can use the DS3608-SR anywhere even in the freezer. Multi-code captures and processes up to 20 barcodes simultaneously--Many labels have multiple barcodes your workers need to capture. Now, one press of the trigger captures the right barcodes and applies the unique data format required for each one for instant transmission to your backend systems,all with complete control over the order barcodes are processed. Faster pick-list processing--Users can easily select and capture an individual barcode from any pick list.
Dimension: | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.6 cm W x 14.2 cm D |
---|---|
Weight | Corded: 10.8 oz./305 g; Cordless: 14.4 oz./407 g |
Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max. |
Operating Current | DS3608-SR (corded): 340 mA (typical) |
Standby Current | DS3608-SR (corded): 100 mA (typical) |
Color | Industrial Green | Supported Host Interfaces. | USB, RS232, Keyboard Wedge. |
Battery | PowerPrecision + 3100 mAh Li-Ion rechargeable battery | User Indicators | Direct decode indicator; LEDs; beeper; vibration |
Scans per Full Charge: | 70,000+ |
---|---|
Illumination | One (1) Hyper Red 660nm LED |
Imager Field of View | Horizontal: 42, Vertical: 28 | Image Sensor | 1,280 x 800 pixels |
Minimum Print Contrast | 15% minimum reflective difference |
Skew/Pitch/Roll | Skew: + 60; Pitch: + 60; Roll: + 360 | Decode Capabilities | 1D:Code 39, Code 128, Code 93, Codabar/NW7, Code
11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5,
GS1 DataBar, Base 32 (Italian Pharma) 2D:PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes. |
Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles |
Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy |
Radio Range | Direct line of sight in open air : Class 1: Up to 300 ft. (100.0 m) Class 2: Up to 30 ft. (10.0 m) |
Operating Temp | Corded: -22 F to 122 F/-30 C to 50 C Cordless: -4 F to 122 F/-20 C to 50 C |
---|---|
Storage Temp | -40 F to 158 F/-40 C to 70 C |
Humidity | 5% to 95% condensing | Drop Specification | Withstands multiple 8.0 ft. / 2.4 m drops to concrete. |
Tumble Specification | 5,000 tumbles @ 3.3 ft. (1 m) |
Sealing | Scanner: IP65 and IP67; FLB cradle: IP65 | ESD | Per EN61000-4-2, +25 KV air discharge, +10 KV direct discharge, +10 KV indirect discharge |
Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK |
LED Safety | International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED) |
Environmental | RoHS EN 50581: 2012 |
