ZEBRA DS8178 SCANNER
CORDLESS 1D/2D SCANNER: Zebra DS8178 is an affordable handheld wireless 1D/2D imager that doesn't compromise performance or features for price. Capture barcodes from mobile devices, 1D and 2D Paper barcodes on items for sale, coupons, loyalty cards and more.
GENERAL PURPOSE USE: This optical scanner is hand held & cordless with an ergonomic, lightweight design. Built to be used reliability all day long while reducing employee fatigue allowing this scanner to be used from production lines to your Point of Sale.
BUILT FOR YOUR BUSINESS: The offered Zebra DS8178 is built primarily for retail and hospitality businesses everywhere, but the applications are endless. Placing this reliable tool at your point of sale will ensure quick transactions and keep the lines moving.
EASY TO USE: Point and shoot scanning with omni-directional scanning means users never need to line up the imager and the barcode. The aim line guides users to scan at the ideal distance from the barcode. This is helpful when capturing wide barcodes.

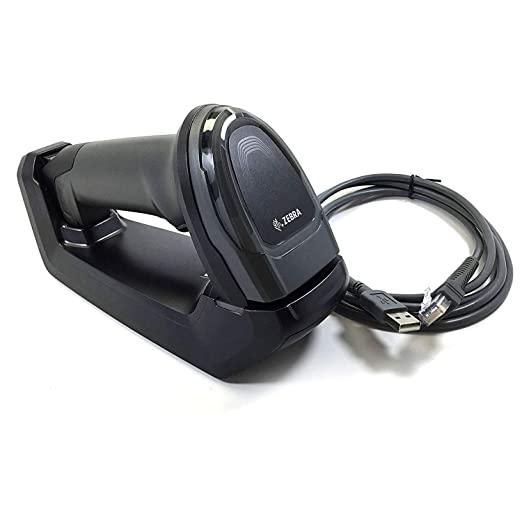

FAST, EASY AND FLEXIBLE CHARGING: Plug the imager directly into the host or any standard wall socket via the Micro USB cable to charge the DS8178 in just 3 hours without the cradle. The Presentation Cradle, which provides hands-free scanning, charges the DS8178 in just few hours.
Dimension: | Corded DS8108 and Cordless DS8178: 6.6 in. H x 2.6 in. W x 4.2 in. D 16.8 cm. H x 6.6 cm. W x 10.7 cm. D Standard Cradle: 2.8 in. H x 3.3 in. W x 8.3 in. D 7.1 cm. H x 8.4 cm. W x 21.1 cm. D Presentation Cradle: 2.9 in. H x 3.7 in. W x 4.8 in. D 7.4 cm. H x 9.4 cm. W x 12.2 cm. D |
---|---|
Weight | Corded DS8108: 5.4 oz./154 g Cordless DS8178: 8.3 oz./235.3 g Desk/Wall Cradle: 7.1 oz./202 g Presentation Cradle: 6.5 oz./182 g |
Input Voltage Range | DS8108: 4.5 to 5.5VDC DS8178 Cradles: 5V: 4.7 to 5.5VDC, 12V: 10.8 to 13.2VDC | Operating Current | Corded DS8108 Operating Current at Nominal Voltage (5.0V): 450 mA Cradle: 470 mA (typical) Standard USB, 743mA (typical) 12V |
Color | Nova White, Twilight Balck | Supported Host Interfaces. | USB, RS232, Keyboard Wedge. |
KeyBoard Support | Support over 90 iinternational Keyboards | User Indicators | Direct decode indicator, good decode LEDs, rear view LEDs, beeper (adjustable tone and volume), dedicated Power Charge Gauge |
Light Source | Aiming Pattern, circular 617nm amber LED |
---|---|
Illumination | (2) 645nm red LEDs |
Imager Field of View | Horizontal: 48, Vertical: 37 | Image Sensor | 1,280 x 960 pixels |
Minimum Print Contrast | 16% minimum reflective difference |
Skew/Pitch/Roll | Skew: + 60; Pitch: + 60; Roll: + 360 |
Operating Temp | 32 to 122 F/0 to 50 C |
---|---|
Storage Temp | -40 F to 158 F/-40 C to 70 C |
Humidity | 5% to 95%RH, non-condensing | Drop Specification | Designed to withstand multiple drops at 6.0 ft/1.8 m to concrete |
Tumble Specification | Designed to withstand 2,000 1.5 ft./0.5 m tumbles |
Sealing | IP52 | ESD | DS8108/DS8178 and Cradles: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
